CAMERA INTERFACE PART#MBZRCM1



REQUIREMENTS
  • MUST have the 4.5 Audio System

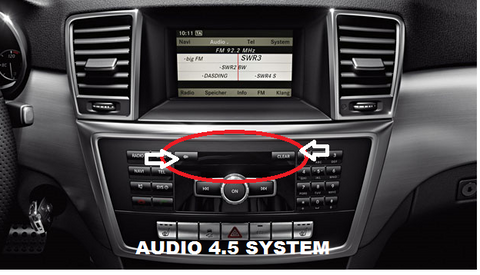

Pictured below is an example on the Audio 4.5 System.  Notice the space between the eject and clear button.  This is a quick indicator that it is an Audio 4.5 System.  This indicator however does not work for the 2014 CLA.



2014 CLA ONLY

Picture below is a 2014 CLA with the 4.5 Audio System.

Pictured below is a 2014 CLA with the 5.0 Audio System.  The MBZRCM1 WILL NOT work.  Requires the MBZMOD2. or the MBZRCM2.

FEATURES
  • Rear camera input.
  • Dynamic Guide Lines.
  • Front camera input.
  • Front camera input can also be used as an Auxiliary Video Input.
  • +12 volt power out puts for cameras.
  • Automatic switching to rear-view camera input when in reverse.
  • Forced rear-view camera option.
  • Module only.
  • Plug & Play installation.

    VEHICLE FITMENT

    MERCEDES

    • 2013 – 2015 A-Class (W176)
    • 2013 – 2016 B-Class (W246)
    • 2013 - 2014 CLA 250 (late 2014)
    • 2012 – 2014 C-Class (W204)
    • 2012 – 2016 C-Class (C204)
    • 2012 – 2016 CLS (C218)
    • 2012 – 2016 E-Class (W212)
    • 2012 – 2016 E-Class (C207)
    • 2013 - 2016 G Wagon (G463)
    • 2013 - 2016 GL (X166)
    • 2014 – 2016 GLA (X156)
    • 2011 – 2016 GLK (W204)
    • 2012 – 2016 ML (W166)
    • 2012 – 2016 SLK (R172)
    • 2013 – 2016 SL (R231)
